| Kodiak installation pictures |
 |
| Do you see the grommet? |

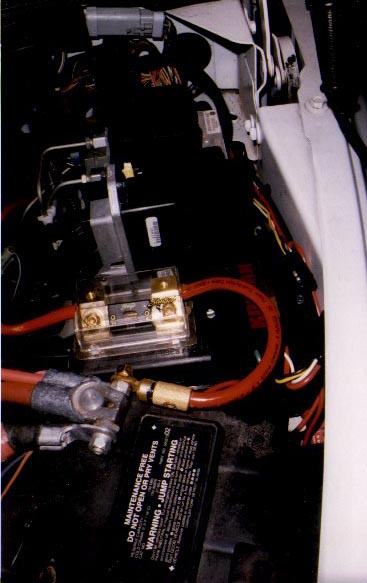

| This is the relay box lid...use short screws. One of the Kodiak controllers is under that battery wire. |

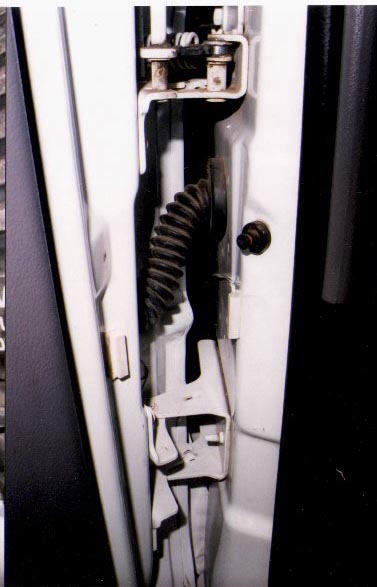

| The magnetic switch... below the door switch. |
| This should be the driver side, looking forward and up, just behind the mudflap. The wires run up the inside of the fender. |
| Mudflap |
| Driver side of truck |

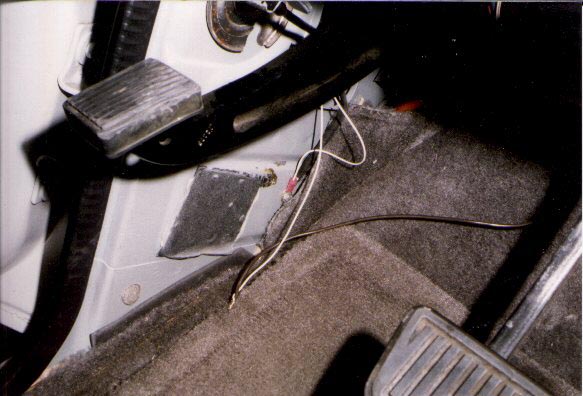

| Obviously the driver side, just behind the E-brake is an opening for the wiring harness, and a grommet that works well for CB antennas and Magnetic switch wires. |
| here |
