More Kodiak Install Pics |

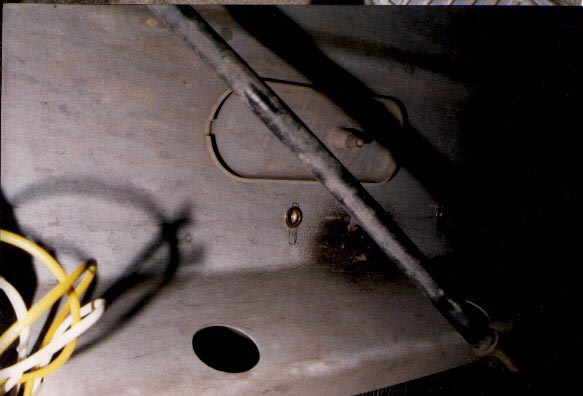

These are the nutserts installed. Use a pop rivet tool. These are steel serts, don't try to use aluminum. This cable looking this is the E-Brake, it was in the way for the install, so I had to move the steps further back than the instructions showed. |
Driver side of truck. |
Rear of truck. |
To
make things easy, I mounted the passenger control box on the passenger
side. I had to remove the air intake box to get at it. The green wire is a ground, the rest is a harness. |
wind shield is above here. |
Passenger side |
Can't even see it. |
